AVLinkPro CH-100
Simple Residential Premise SIP Bridge Controller, perfect for up to 8 devices. Integrates with smart home systems like Crestron Home Allows for door intercom communication for a wide variety of brands and applications. a new micro sized solid state bridge link device that provides the connectivity in a simple format. Supports functions like paging and video intercom bridge. Also includes an onboard 2 pole dry contact relay.
AVLinkPro LP-200
Complete Residential Premise SIP Bridge Controller, ideal for up to 10 devices. Easily transcode video streams and interconnect systems with this micro sized solid state bridge device that operates silently and performs brilliantly.
AVLinkPro LP-400, LP-400-V and LP-400-X
The ideal communication mediator for most single residence installations or small multi dwelling units (MDU) for 20 devices plus. Our most popular, complete low profile Rack Mountable SIP Bridge controller with port expansion slot. The LP-360-X offers built-in features of our V-SENSE solution. The LP-360-X model delivers the additional added features of a full surveillance solution as well as Network Video Recording.
AVLinkPro LP360RAD
The AVLinkPro 360 Radius is a Enterprise SIP/RTSP/TCP/IP bridge that allows for medium and large installations such as Multiple Unit Dwellings and campuses. With full connectivity and adequate expansion take advantage of video intercom, SIP connected communications, Cross platform control and seamless integration.

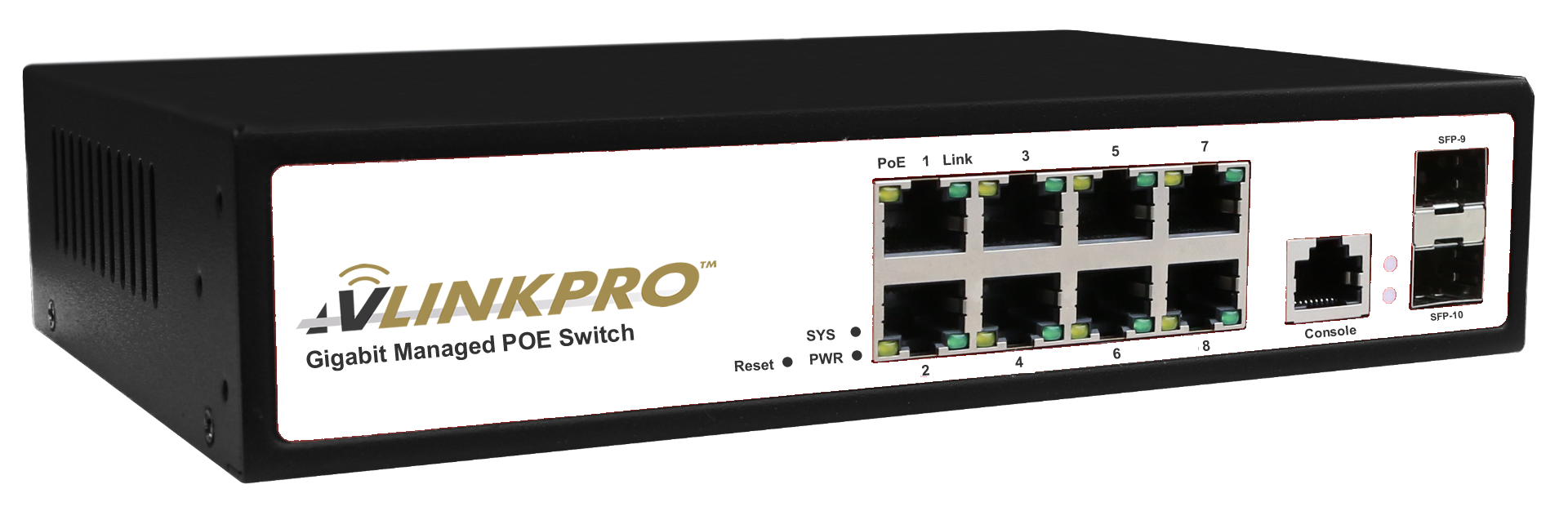

AVLinkPro CLIO+ PoE Network Switch
The AVLinkPro CLIO Layer 3 Series PoE & Fiber Gigabit Network Switch provides a manageable solution for Multiple Unit Dwelling installations where dual network topologies are needed. Robust connectivity with fully PoE + ports as well as VLAN management and web based management for a seamless integration.
AVLinkPro ECHO Network Paging Adapter with Relay
The AVLinkPro ECHO Series Network Paging Adapter provides an engineered retrofit solution that can append any sound system with intercom audio paging. Designed to support inbound SIP (VOIP) or IP triggering technology as well as IP relay technology. This module will enable security announcements as well as lock down control all in one system. The design is DIN mountable and can be cloud controlled or managed through one control system or through an AVLinkPro platform. API management and web based management are built in for seamless integration.
AVLinkPro RELOGIC Network Based Relay Technology
The AVLinkPro RELOGIC Series Network Relays provides a manageable solution for Multiple Unit Dwelling installations where low voltage control is required. Engineered with expansion and control in mind, these stackable DIN mountable systems can grow up to 128 relays through one control system or through an AVLinkPro platform. API management and web based management are built in for seamless integration.
Security and Privacy Matter
Our technology is designed to work flawlessly and securely. All voice, video and data is sent using the most secure methods available.
Enhance your world.

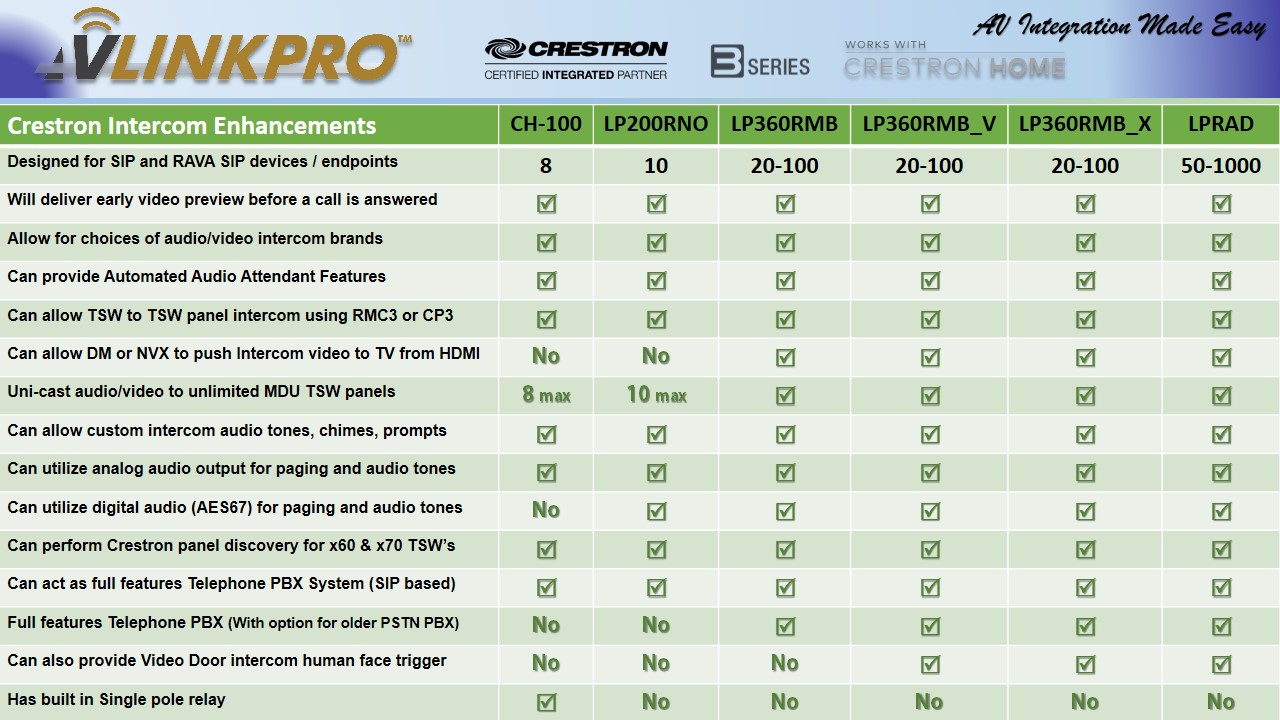

| Specifications |
CH-100 Micro Controller |
LP-200 Mini Controller |
LP-360 RM 1U Slim Controller |
LP-360 RM -V 1U Slim Controller |
LP-360 RM-X 1U Slim Controller |
Radius Pro 2U RM Controller |
| CH-100 | LP-200RNO | LP-360-RM | LP-360-RM-V | LP-360-RM-X | LP-RAD-PRO | |
| Included Device Licenses | 10* Channels maximum | 15* Channels maximum | 20* Initial Channels (expandable license packs available to 1000) | 20* Initial Channels (expandable license packs available to 1000) | 20* Initial Channels (expandable license packs available to 1000) | 50* Initial Channels plus (expandable license packs available to 5000) |
| Application | Residential installation with 1-4 entry intercom and 1-7 touch screen panels | Residential /Commercial installation with 2-5 entry intercom and 2-10 touch screen panels. Telephone bridge integration capable. | Larger Residential /Commercial installation with 2-5 entry intercom and 2-100 touch screen panels. Telephone integration capable. | Larger Residential /Commercial installation with 2-5 entry intercom and 2-100 touch screen panels. Telephone integration capable. | Larger Residential /Commercial installation with 2-5 entry intercom and 2-100 touch screen panels. Telephone integration capable. Surveillance and DVR built-in solution | Multi-Tenant Residential /Commercial Enterprise installation with 1-20 entry intercom and 1-1000+ touch screen panels or end points. Telephone integration capable. |
| Technology | AVLinkPro, PBX | AVLinkPro, PBX, AES67 | AVLinkPro, PBX AES67, Expandable | AVLinkPro, PBX V-SENSE, AES67 | AVLinkPro, V-SENSE,PBX, ZoneMinder | AVLinkPro, V-SSENSE, PBX, AES67 |
| Integration | Crestron SIMPL Home SIMPL + Others | Crestron SIMPL, Home+ Others | Crestron SIMPL, Home + Others | Crestron SIMPL+ Others | Crestron SIMPL+ Others | Crestron SIMPL+ Others |
| Internal Storage | 8GB Solid State | 120GB Solid State | 120GB Solid State | 120GB Solid State | 120GB + 1TB Solid State | Dual 120GB Solid State Raid 1 |
| Expansion | Can be expanded to 15 Licenses. | N/A |
Slot for addon up to 4FXS / 4FXO| Dante Audio Card |
Slot for addon up to 4FXS / 4FXO| Dante Audio Card |
Slot for addon up to 4FXS / 4FXO| Dante Audio Card |
3 Slots for add-on up to 24 ports each Dante Audio Card |
| Audio In/Out | N/A | 2.1 Mini Jack | 2.1/5.1 Mini Jacks | 2.1/5.1 Mini Jacks | 2.1/5.1 Mini Jacks | 2.1/5.1 Mini Jacks |
| RJ45 Ports | 1x 10/100/1000 | 1x 10/100/1000 | 2x 10/100/1000 | 2x 10/100/1000 | 2x 10/100/1000 | 2x 10/100/1000 |
| RS-232 Ports | 1x USB | 1x RS232, 2 USB | 1x RS232 1xRS232/422/485, 3xUSB | 1x RS232 1xRS232/422/485, 3xUSB | 1x RS232 1XRS232/422/485 3xUSB | 1x RS232 1xRS232/422/485 |
| Dimensions | 5.01 x 5.55″ x 1.24″ | 5.07″ x 4.29″ x 1.33″ | 19.00” x 1.75” x 11.12” | 19.00” x 1.75” x 11.12” | 19.00” x 1.75” x 11.12” | 19.00” x 3.5” x 20.80” |
| Voltage | 48V | 110/240VAC | 110/250VAC | 110/250VAC | 110/250VAC | 110/250VAC |
| Power Supply | POE + | 12V AC | 12V AC 220Watt | 12V AC 220Watt | 12V AC 220Watt | 12V AC 460Watt 2 x (redundant hot pluggable) |
| Mounting | Micro Stand Alone optional mount | Micro Stand Alone or Wall/DIN Mount | 1U Rack Mountable with Ears | 1U Rack Mountable with Ears | 1U Rack Mountable with Ears | 2U Rack Mountable with Ears |
