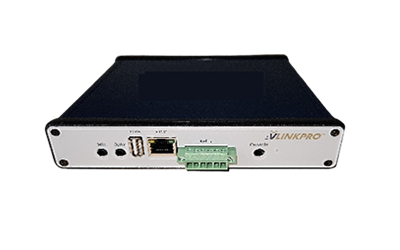

AVLinkPro CH-100

Simple Residential Premise SIP Bridge Controller, perfect for up to 8 devices. Integrates with smart home systems like Crestron Home Allows for door intercom communication for a wide variety of brands and applications. a new micro sized solid state bridge link device that provides the connectivity in a simple format. Supports functions like paging and video intercom bridge. Also includes an onboard 2 pole dry contact relay.

AVLinkPro LP-200

Complete Residential Premise SIP Bridge Controller, ideal for up to 10 devices. Easily transcode video streams and interconnect systems with this micro sized solid state bridge device that operates silently and performs brilliantly.

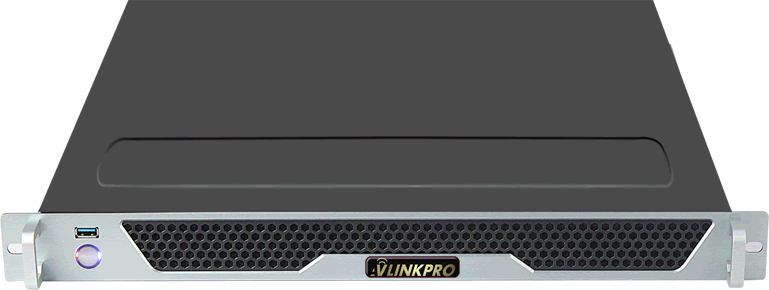

AVLinkPro LP-360, LP-360-V and LP-360-X

The ideal communication mediator for most single residence installations or small multi dwelling units (MDU) for 20 devices plus. Our most popular, complete low profile Rack Mountable SIP Bridge controller with port expansion slot. The LP-360-X offers built-in features of our V-SENSE solution. The LP-360-X model delivers the additional added features of a full surveillance solution as well as Network Video Recording.

AVLinkPro LP-Rad

The AVLinkPro Radius is a Enterprise SIP/RTSP/TCP/IP bridge that allows for medium and large installations such as Multiple Unit Dwellings and campuses. With full connectivity and adequate expansion take advantage of video intercom, SIP connected communications, Cross platform control and seamless integration.

Tested Door Intercoms

Enhance your world.

Compare AVLinkPro Products

Specifications	CH-100 Micro Controller	LP-200 Mini Controller	LP-360 RM 1U Slim Controller	LP-360 RM -V 1U Slim Controller	LP-360 RM-X 1U Slim Controller	Radius Pro 2U RM Controller
	CH-100	LP-200RNO	LP-360-RM	LP-360-RM-V	LP-360-RM-X	LP-RAD-PRO
Included Device Licenses	10* Channels maximum	15* Channels maximum	20* Initial Channels (expandable license packs available to 1000)	20* Initial Channels (expandable license packs available to 1000)	20* Initial Channels (expandable license packs available to 1000)	50* Initial Channels plus (expandable license packs available to 5000)
Application	Residential installation with 1-4 entry intercom and 1-7 touch screen panels	Residential /Commercial installation with 2-5 entry intercom and 2-10 touch screen panels. Telephone bridge integration capable.	Larger Residential /Commercial installation with 2-5 entry intercom and 2-100 touch screen panels. Telephone integration capable.	Larger Residential /Commercial installation with 2-5 entry intercom and 2-100 touch screen panels. Telephone integration capable.	Larger Residential /Commercial installation with 2-5 entry intercom and 2-100 touch screen panels. Telephone integration capable. Surveillance and DVR built-in solution	Multi-Tenant Residential /Commercial Enterprise installation with 1-20 entry intercom and 1-1000+ touch screen panels or end points. Telephone integration capable.
Technology	AVLinkPro, PBX	AVLinkPro, PBX, AES67	AVLinkPro, PBX AES67, Expandable	AVLinkPro, PBX V-SENSE, AES67	AVLinkPro, V-SENSE,PBX, ZoneMinder	AVLinkPro, V-SSENSE, PBX, AES67
Integration	Crestron SIMPL Home SIMPL + Others	Crestron SIMPL, Home+ Others	Crestron SIMPL, Home + Others	Crestron SIMPL+ Others	Crestron SIMPL+ Others	Crestron SIMPL+ Others
Internal Storage	8GB Solid State	120GB Solid State	120GB Solid State	120GB Solid State	120GB + 1TB Solid State	Dual 120GB Solid State Raid 1
Expansion	Can be expanded to 15 Licenses.	N/A	Slot for addon up to 4FXS / 4FXO\| Dante Audio Card	Slot for addon up to 4FXS / 4FXO\| Dante Audio Card	Slot for addon up to 4FXS / 4FXO\| Dante Audio Card	3 Slots for add-on up to 24 ports each Dante Audio Card
Audio In/Out	N/A	2.1 Mini Jack	2.1/5.1 Mini Jacks	2.1/5.1 Mini Jacks	2.1/5.1 Mini Jacks	2.1/5.1 Mini Jacks
RJ45 Ports	1x 10/100/1000	1x 10/100/1000	2x 10/100/1000	2x 10/100/1000	2x 10/100/1000	2x 10/100/1000
RS-232 Ports	1x USB	1x RS232, 2 USB	1x RS232 1xRS232/422/485, 3xUSB	1x RS232 1xRS232/422/485, 3xUSB	1x RS232 1XRS232/422/485 3xUSB	1x RS232 1xRS232/422/485
Dimensions	5.01 x 5.55″ x 1.24″	5.07″ x 4.29″ x 1.33″	19.00” x 1.75” x 11.12”	19.00” x 1.75” x 11.12”	19.00” x 1.75” x 11.12”	19.00” x 3.5” x 20.80”
Voltage	48V	110/240VAC	110/250VAC	110/250VAC	110/250VAC	110/250VAC
Power Supply	POE +	12V AC	12V AC 220Watt	12V AC 220Watt	12V AC 220Watt	12V AC 460Watt 2 x (redundant hot pluggable)
Mounting	Micro Stand Alone optional mount	Micro Stand Alone or Wall/DIN Mount	1U Rack Mountable with Ears	1U Rack Mountable with Ears	1U Rack Mountable with Ears	2U Rack Mountable with Ears
